Extruder Insulation Jacket — Barrel, Die-Head & Adapter Insulation
Extruders run continuously — 24 hours a day, 6 days a week — which makes them one of the biggest heater energy drains in any plastic plant. IHEAT's IWRAP extruder insulation jacket wraps the barrel, die head, adapter and screen changer, cutting radiated heat loss by up to 85%. Real installations across India report 25–35% electricity savings and payback in 3–4 months, with the added benefit of a cooler, safer shop floor.
Why extruder heater loss is worse than injection molding
Unlike injection molding presses that cycle, extruders run steady-state. The barrel is at process temperature (200–290°C typical for PE, PP, PVC, PET) for the entire production shift. Radiated heat loss is therefore continuous — every uninsulated hour is money leaving through the barrel wall.
A standard 90mm single-screw PE extruder loses ~4.5 kWh/hour to ambient without insulation. Run that machine 20 hours/day × 300 days = 27,000 kWh/year × ₹8.5/kWh = ₹2.3 lakh wasted per extruder, per year.
IWRAP extruder jacket design — barrel, die head, adapter, screens

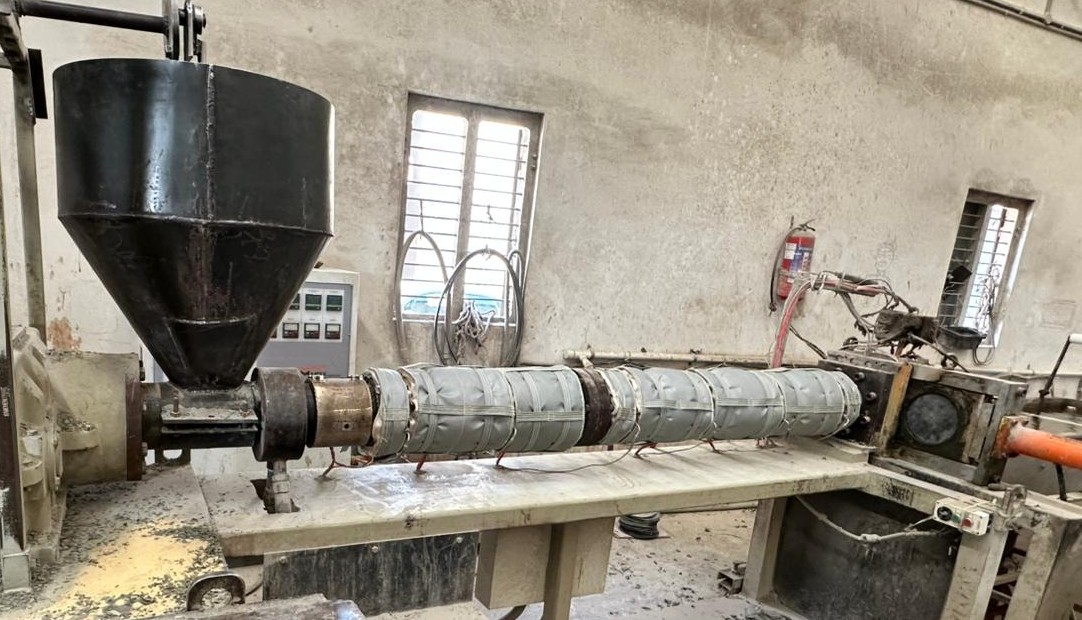

The IWRAP extruder insulation system is manufactured as separate, indexed pieces so nothing obstructs maintenance: (1) barrel jacket in zones matching your heater band layout, (2) die-head jacket with cut-outs for pressure transducers and melt-temperature probes, (3) adapter jacket with a hinged split for quick access, and (4) screen changer cover.
Every piece uses a ceramic fibre core, aluminised radiant reflective layer, and abrasion-resistant fibreglass outer. Fasteners are heat-resistant velcro + stainless steel D-rings. Working temperature is rated 550°C continuous with short spikes to 700°C — well above typical extrusion process temperatures.
Compatibility & sizing
IWRAP is custom-manufactured for your exact machine. Send us barrel OD, barrel length, number and length of heater zones, die-head dimensions, and adapter geometry. Compatible with all major extruder OEMs: Windsor, Kabra, Bausano, Battenfeld-Cincinnati, Krauss Maffei, Milacron, Rajoo, Kolsite, Reifenhäuser, Amut, Bandera, and every Indian OEM.
Typical lead time is 7–10 working days from confirmed drawing. Installation takes 20–40 minutes per machine depending on complexity — zero downtime, no drilling, no permanent fixtures.
How the ROI adds up on continuous extrusion
For a 90mm PE pipe extruder running 22 hrs/day at ₹8.5/kWh, IWRAP saves approximately ₹1.9 lakh/year at 28% average savings. Jacket investment is typically 4–5 months at that rate — often less because pipe/film lines run higher hours than the model. Every year after payback is pure margin.
Bonus savings: cooler ambient temperature reduces exhaust fan and evaporative cooler loads. On a 5-extruder shed we recently insulated in Ahmedabad, ambient dropped 4°C and operators reported significantly improved working conditions.
Frequently Asked Questions
Can IWRAP be installed on a running extruder without stopping production?+
Yes. IWRAP can be fitted zone-by-zone with the machine at temperature. No shutdown is required for most single-screw extruders. For twin-screw with complex die geometry we recommend a short 30-minute pause to fit the die-head piece safely.
Does the insulation jacket affect melt temperature control?+
It improves control. With IWRAP the heater bands cycle less often and the barrel holds set-point more consistently, which stabilises melt viscosity and output rate — especially useful on precision film and pipe lines.
What is the ROI for insulating an extruder barrel and die head?+
Typical payback is 3–4 months for extruders running 20+ hrs/day. Continuous 24/7 lines pay back in as little as 60 days. Use iheat.in/roi-calculator for a machine-specific estimate.
Is IWRAP suitable for PVC extrusion where the die head runs hotter?+
Yes. IWRAP is rated to 550°C continuous, which is well above PVC processing temperatures (170–210°C). We also offer a heavier-duty variant for masterbatch and engineering-plastic extruders.
Related insulation solutions
Ready to cut heater electricity bills by 20–35%?
Send us your barrel dimensions and heater load — our engineers respond with a custom IWRAP quotation within 24 hours.
